CB antennas: 5 picks for a clearer signal

A CB antenna should fit your vehicle before it fits a shopping list. A strong magnet mount is no help on an aluminum roof. A tall whip can be a good radio choice and a poor choice for a low garage. A short antenna may be easy to live with but leave less room for a weak signal.

My default is a Wilson 1000 CB antenna kit on a suitable steel roof. The other four picks below solve different problems: a fixed bracket, more height, less height or a vehicle with little metal to form a ground plane.

Five CB antennas, five useful roles

Start with the mounting problem

CB antenna	Where it makes sense
Wilson 1000 magnet mount	A removable setup on a suitable steel roof.
Firestik II FS4	A four-foot antenna on a properly grounded bracket.
Sirio Performer 5000 PL	A tall mobile whip when you have room and a suitable mount.
Wilson Little Wil	A shorter magnet mount when clearance is the main limit.
Firestik FG4-648 NGP kit	A fiberglass vehicle or other setup with too little metal ground plane.

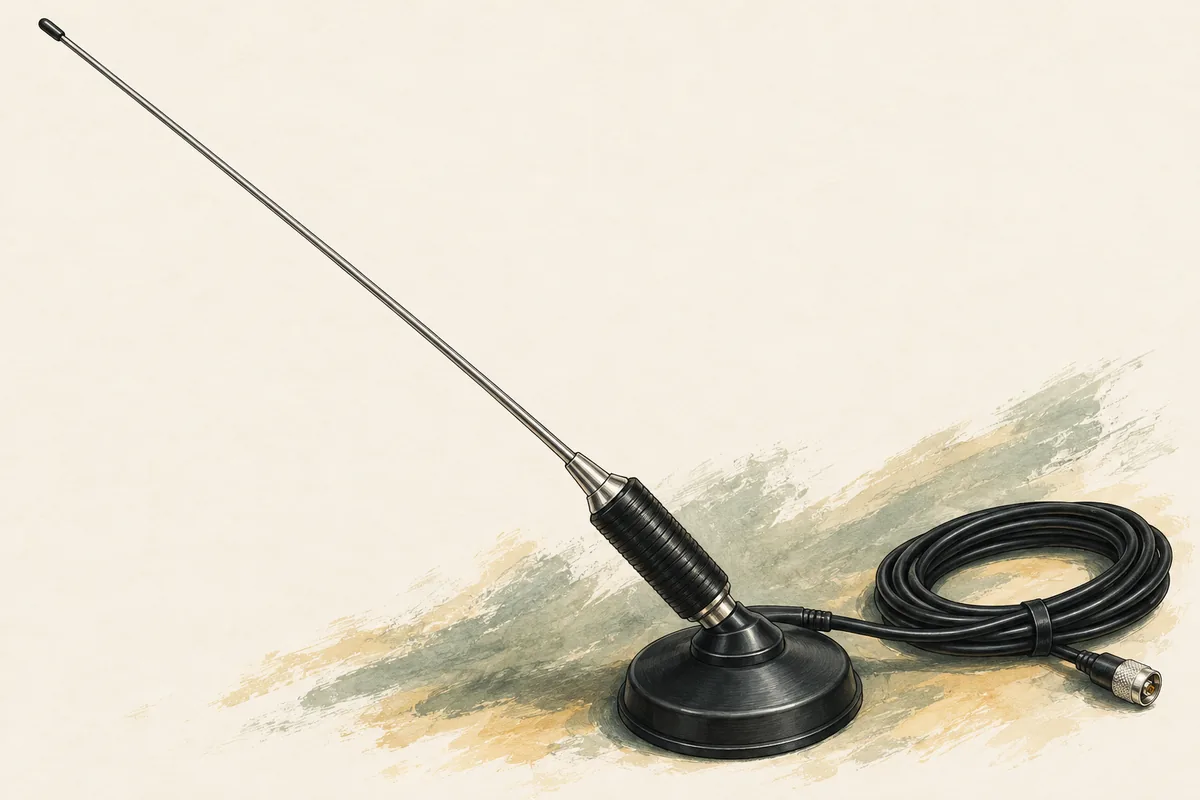

1. Wilson 1000: a magnet mount for steel roofs

The Wilson 1000 magnet-mount kit is a sensible starting point for a car with a broad steel roof. Its 62-inch stainless steel whip works with a base-loaded coil. The magnetic base and coax come in the package, which removes some guesswork from a first CB radio system. Check the exact kit: roof-mount and magnet-mount versions are different products.

The stainless steel whip is the main reason I would choose this CB radio antenna over a very short model. You are accepting more height to avoid making clearance the first design goal. A central roof position also gives the antenna a better place to work than a low corner beside body panels.

The limitation is physical. Add this CB antenna's full mounted height to the roof height and check your usual garage, parking deck and drive-through. A magnet needs a surface it can grip. Aluminum, glass and fiberglass roofs do not qualify just because they are part of a car.

I would also check the roof finish, cable route and mount condition often. Grit under a magnet can damage paint, and a pinched coax cable can harm CB radio performance. A removable mount still needs care. Check it each time you install it.

2. Firestik II FS4: a tunable fiberglass antenna

The four-foot Firestik II FS4 suits a proper bracket mount on a vehicle with a usable metal ground plane. This fiberglass CB antenna has a top-loaded design, a 3/8-24 threaded base and a tunable tip.

That tunable tip is the feature I value most in this CB radio antenna. You remove the cap and adjust the screw, rather than cutting the CB antenna for each small change. It gives a beginner a more forgiving way to make careful SWR adjustments in the final mounting position.

In a fiberglass antenna, the fiberglass is the support. The conductor wound around it is what carries the radio-frequency current. The thick rod does not send the signal by itself. Nor does its size prove it will beat a stainless steel whip antenna.

I would choose the FS4 for a truck or Jeep with a sound bracket mount. Much of this top-loaded CB antenna should sit clear of nearby metal. I would not hide it low behind the cab, then expect the tunable tip to fix that placement. The standard FS4 needs a ground plane. Its tunable tip cannot turn it into a no-ground-plane CB antenna.

3. Sirio Performer 5000 PL: for room to go tall

The Sirio Performer 5000 PL is a tall, base-loaded CB radio antenna with a stainless steel whip. Sirio lists its height at about 1.965 meters, or 6.45 feet. Its PL connection and tilting hardware suit an installation planned around the antenna, rather than a quick swap onto any bracket you happen to own.

I would shortlist it when height is acceptable and you want a long whip antenna. The tilt feature can help with storage or access, but you still need to plan when and how to lower it safely. It is not permission to drive under an obstacle with the whip leaning across traffic or people.

The PL version does not include coax on Sirio's specification sheet. Budget for a compatible mount and cable unless the retailer explicitly includes them in a bundle. Similar product names do not make the PL and through-hole versions interchangeable.

This is my tall CB antenna choice. I would not promise a measured range win over the Wilson without comparing them in the same place. I would choose the complete installation I could mount well, tune and live with. Its high power-handling figure is not a reason to exceed the limits of the CB service.

4. Wilson Little Wil: when height decides

The Wilson Little Wil is a compact CB antenna kit with a 36-inch stainless steel whip. It is the choice here for drivers who need a shorter setup and are willing to accept the tradeoff.

A smaller CB radio antenna is easier to handle and store. That can make the difference between carrying a CB radio on a trip and leaving it in the garage. I would consider it for casual convoy use when the taller picks are impractical.

I would not buy it expecting the same weak-signal margin as a well-installed longer whip in every setting. Shortening a CB antenna brings compromises, even when a loading coil makes it resonate near the right frequency. A low SWR reading cannot erase those compromises.

As with the Wilson 1000, its magnetic base needs a suitable surface and a sensible cable route. Choose it because you need the smaller size. If height is not the problem, start with the longer kit. That saves buying a short CB antenna and replacing its whip later.

5. Firestik FG4-648: a matched NGP antenna kit

The Firestik FG4-648 no-ground-plane kit is the specialist pick. This CB antenna kit has a four-foot fiberglass antenna and matching cable. Its mount can fit a mirror bar, rail or side panel. Choose it when the vehicle lacks the metal area a normal mobile antenna needs.

That makes it worth considering for a fiberglass-bodied vehicle or a similar mounting problem. NGP means no ground plane. It does not mean that the antenna needs no tuning, that every mounting point is good or that electrical installation instructions no longer matter.

The coax is part of the antenna system. Do not replace it with a random length of ordinary coax. In this CB radio system, the cable is part of the antenna design. Use the correct matching parts and follow the kit's installation guide.

I would buy this CB antenna kit to solve a real lack of ground plane. I would not pay for it as a general upgrade on a steel-roof car where a standard CB radio antenna can be installed well. When the vehicle is mostly fiberglass, getting the correct system matters more than choosing the most familiar brand name.

How to choose a CB radio antenna

A CB radio antenna sends and receives signals near 27 MHz. That band calls for a long antenna compared with the small aerial on many handheld radios. A loading coil lets a shorter CB antenna work on the band, but it does not remove every loss caused by making the antenna shorter.

I would compare three things first: antenna length, construction and the mount. A stainless steel whip antenna can flex in the wind. A fiberglass antenna holds its shape more firmly. Neither material alone tells you the range or sound clarity you will get. The complete setup decides how those features perform.

A tunable tip makes small changes easier on a fiberglass CB antenna. A removable magnetic base helps with easy installation and storage. For a truck that spends time on rough tracks, mount strength and durability deserve close attention. Check the threaded shaft and bracket as well as the visible rod.

Off-road vehicles often need more thought than a simple roof fit. A Jeep with a soft top has a different mounting problem from a steel-roof truck. A motorcycle has even less space for a long whip antenna. Choose a mount designed for the vehicle, then find the right antenna to suit it.

These five picks are mobile antennas. For a home base station, choose a CB radio antenna made for a fixed outdoor installation. A mobile CB antenna sitting on a wooden shelf lacks the metal body it expects. Moving it indoors also adds walls and local noise to the problem.

Ground plane: why the vehicle matters

A typical mobile CB antenna uses the vehicle's metal body as part of the CB radio system. This is often called the ground plane. It is different from simply running a wire to the battery's negative terminal.

A bracket can hold a CB radio antenna firmly yet have a poor electrical connection to the body. Paint, rust and loose joints can all cause faults. A panel may also lack a good link to the rest of the body. Follow the antenna and mount maker's instructions for the required contact and bonding.

A magnet mount also works differently from a bolted metal-to-metal connection. Its design couples to the metal surface beneath it. Do not scrape paint away under a magnet to try to improve the ground. Use the mount as designed and keep the surface clean.

For an NGP system, follow the Firestik installation instructions closely. They stress giving the antenna room and keeping its upper section clear. The right antenna kit still needs a clear position to send and receive signals.

Mounting height and clearance

Place the CB antenna where it has room to work and where the mount can carry its load. A high, central location is often useful on a metal vehicle. That is a starting point, not permission to ignore a sunroof, roof rack or the strength of the panel.

Nearby metal changes the antenna's surroundings. A whip antenna low beside a truck cab may be hard to tune. It can also send more signal in some directions than others. A tidy-looking low mount can reduce reception and range.

Measure the full installed height. Include the base, shaft, bracket and any spring, not just the antenna length in the listing. Check overhead wires from a safe distance and lower or remove the antenna before entering a place with inadequate clearance.

For people who mainly want handheld group calls, it may be simpler to choose from our long-range walkie-talkie picks. A vehicle CB antenna is useful when you are building a CB station. It is not an accessory that turns an unrelated handheld into a CB radio.

SWR tuning: match the antenna after installation

Standing-wave ratio, or SWR, measures the electrical match at a point in your CB radio antenna system. A lower reading is usually the aim, but the meter does not show how well the antenna radiates. An inefficient system can still show a reassuring number.

Tune with the CB antenna in its final position and the doors and other large panels in their normal positions. Move away from buildings and large metal objects when practical. Follow the meter's calibration steps and the antenna's own tuning directions.

Take readings on a low CB channel and a high CB channel within the range you plan to use. The pattern helps show which way to tune the CB antenna: longer or shorter. Make small changes and check again. Do not start by cutting a whip when the real fault could be a connector or mount.

Firestik's CB and SWR guide explains the relationship between antenna length, installation and meter readings. The important buying point is simple: leave time and budget for tuning. A CB antenna kit arriving in one box does not mean it is ready to transmit from every truck without adjustment.

If the SWR remains high across the band, stop and check the installation rather than making long transmissions. Look for damaged coax, a shorted connector, the wrong mount hardware or a missing insulating washer where one is required. Follow the CB radio maker's limits for the reading and duty cycle.

Coax, connectors and CB antenna kit costs

Compare the cost of a complete CB radio antenna setup, not just the rod or whip. The FS4 needs an appropriate mount and feed line. The Sirio PL needs compatible mounting hardware and cable unless sold as a bundle. The Wilson and Firestik NGP antenna kit options package more of those parts together.

Confirm the connector that reaches the CB radio. A cable fitting onto one end of an adapter does not prove the rest of the system is correct. Each extra join also adds a place for strain, moisture or a loose contact.

Route coax away from moving seat parts, sharp edges and places where doors crush it. Keep bends gentle and support the cable so the connector does not carry its weight. Check the route after a few drives, not just while the car is parked.

For a normal ground-plane setup, do not assume a magic cable length will repair a bad CB antenna. For the NGP kit, the matched cable is part of the design. Do not cut or swap it to make it fit. The right advice depends on which system you actually own.

How much range should you expect?

There is no fixed range for any CB radio antenna here. The CB radio, terrain, local noise and the antenna at the other end all affect communication. At times, the sky can carry a signal far beyond its usual range. One such contact is a poor guide to daily road use.

In this magnet-mount CB antenna discussion, Little Wil owners report a few miles of range, with results varying by route. One describes moving to a longer antenna for better reception. These reports show the tradeoff; they do not promise the same performance on your truck.

Do not confuse CB antenna power handling with CB radio output. A product rated to tolerate far more power than a normal CB sends does not create that power. It also does not say how much stronger your signal will be.

If long-distance amateur radio is your main interest, our Xiegu G90 review covers a small HF transceiver for that different service. A CB antenna and a ham-radio station have different requirements and should be chosen as complete systems.

My final choice

For a suitable steel-roof car, I would start with the Wilson 1000 magnet-mount kit. The FS4 suits a sound bracket mount. The Sirio makes sense when you can use its extra height. The Little Wil earns its place when clearance rules out the longer choices.

For a fiberglass vehicle with little metal ground plane, I would choose the matched Firestik NGP antenna kit. The best CB antenna is the one you can install well, tune correctly and keep in place. Get those parts right before spending more on the CB radio.
